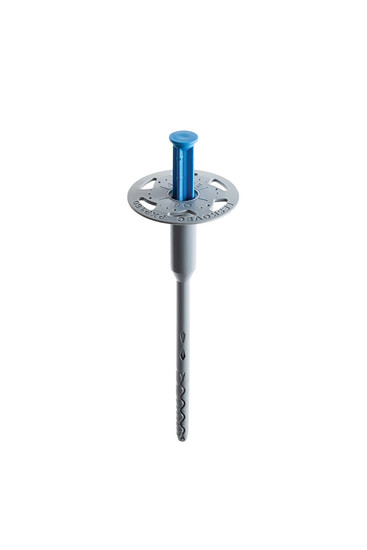

Pričvrsnica PXP-KUdarni pričvršćivač – Metalna jezgra

Koristi se za pričvršćivanje svih vrsta toplinsko izolacijskih ploča na svim vrstama podloga ( A, B, C, D, E ).

Karakteristike:

  • kvalitetni udarni pričvršćivač.
  • unaprijed sastavljeni pričvršćivač omogućuje bržu ugradnju.
  • kratka sidrena dubina omogućuje brzu i ekonomičnu ugradnju.
  • plastificirana glava metalnog čavla smanjuje toplinski most.
  • tanka glava pričvršćivača poravna se s površinom izolacije.
  • moguće korištenje s pritisnim pločicama, s kojima povećavamo površinu za pričvršćivanje.

Tehnički podaci

  • Promjer pričvršćivača 8 mm
  • Promjer glave 60 mm
  • Sidrena dubina ABC 30 mm / DE 50 mm
  • Toplinska provodljivost u točki 0,00 W/K
  • Kategorija uporabe A B C D E
  • Europska tehnička ocjena ETA-20/0656
PXP-K Za debljinu izolacijske ploče Pakiranje
Podloga - ABC Podloga - DE Karton Paleta
Duljina mm Debljina mm Debljina mm komad komad
PXP-K 100 50 - 60   100 5000
PXP-K 120 70 - 80 50 - 60 100 5000
PXP-K 140 90 - 100 70 - 80 100 5000
PXP-K 160 110 - 120 90 - 100 100 4000
PXP-K 180 130 - 140 110 - 120 100 4000
PXP-K 200 150 -160 130 - 140 100 3000
PXP-K 220 170 - 180 150 -160 100 3000
PXP-K 240 190 - 200 170 - 180 100 3000
PXP-K 260 210 - 220 190 - 200 100 3000
PXP-K 280 230 - 240 210 - 220 100 3000
PXP-K 300 250 - 260 230 - 240 100 3000

U slučaju sidrenja kroz staru žbuku, odnosno postojeću fasadu, potrebno je odabratipričvršćicač s duljinom koja odgovara debljini postojeće žbuke odnosno debljini postojeće izolacije odnosno fasade.
