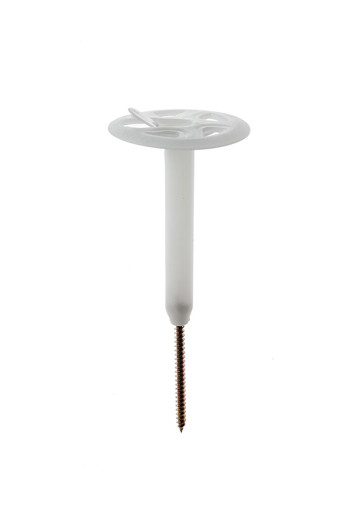

PZV AnchorFixing with a screw

PZV fixings are used for fixing insulation boards to turnkey constructions, such as wood, OSB, fibre cement, tin …

Characteristics:

  • High-quality screw anchor
  • Strong resistance to UV rays

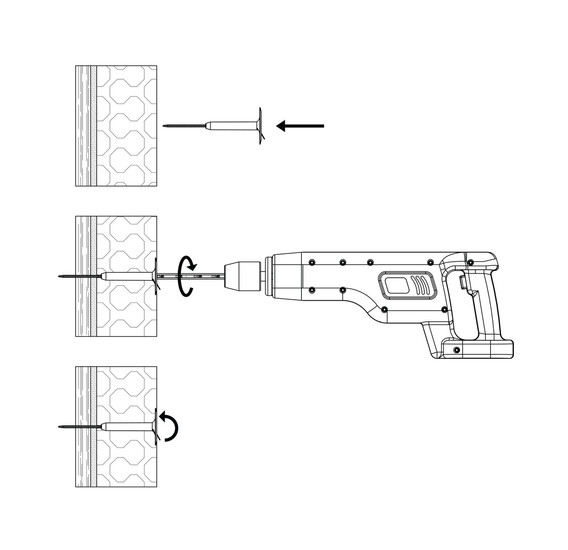

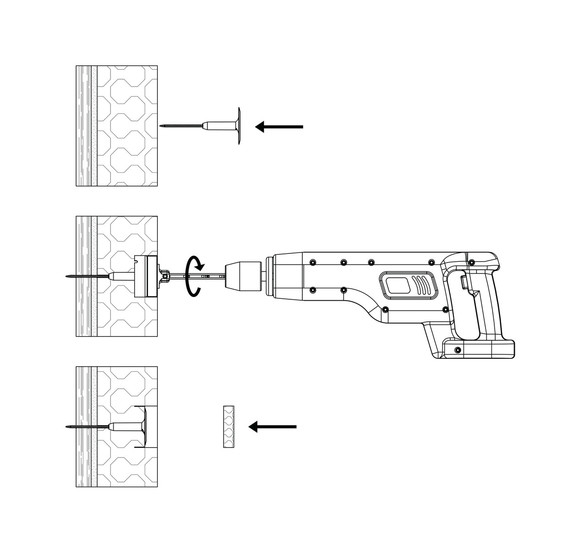

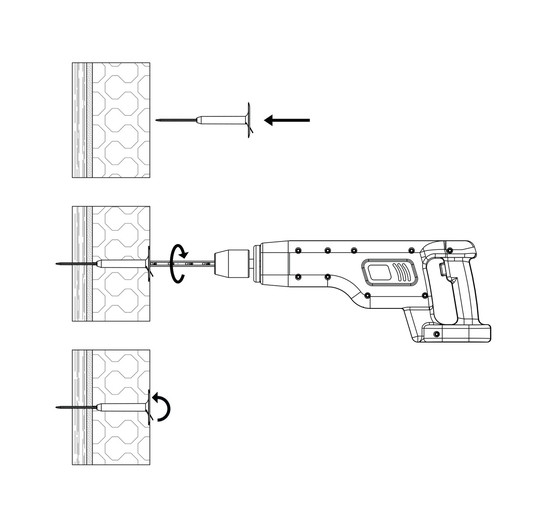

  • Installation without beforehand cutting of insulation to plunge the fixing head with a PZV tool
  • Simple and quick installation
  • For preventing thermal bridges (0,00 W/K)
  • For evening of insulation surface
  • Possible use with washers to enhance fixing surface



Tehnical data

  • Fixing diameter 5 mm
  • Head diameter 60 mm
  • Anchoring depth 30 mm
  • Point thermal transmittance 0,00 W/K
PZV Insulation  thickness Pakiranje
Countersunk anchoring Surface anchoring Box Pallet
PZV tool PZV pole
Lengthmm Thickness mm Thickness mm Item Item
PZV 15   20 - 30 200 19200
PZV 30 70 - 90 40 - 60 200 19200
PZV 60 100 - 120 70 - 90 200 9600
PZV 90 130 - 150 100 - 120 200 9600
PZV 120 160 - 180 130 - 150 200 8000
PZV 150 190 - 210 160 - 180 200 8000
PZV 180 220 - 240 190 - 210 200 6000
PZV 210 250 - 270 220 - 240 200 6000
